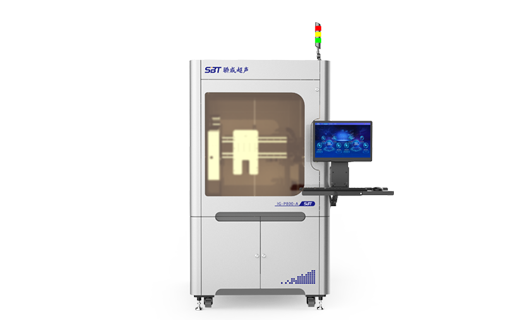

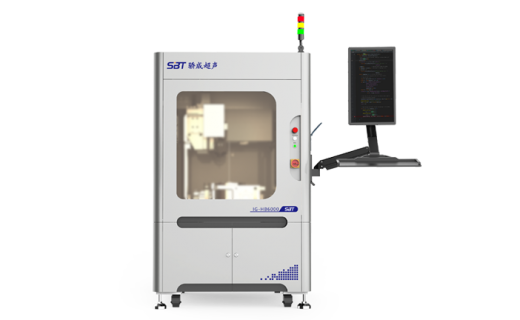

Terminal Ultrasonic Welder
Application

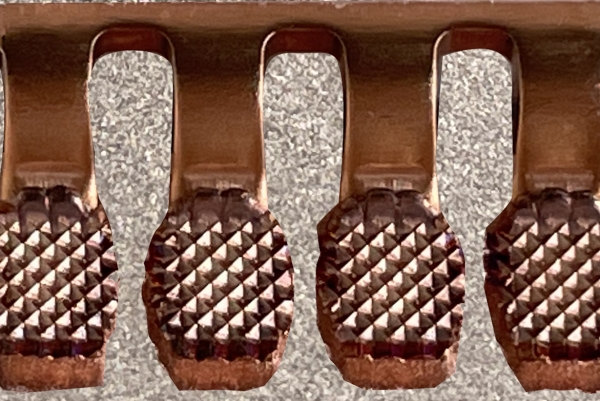

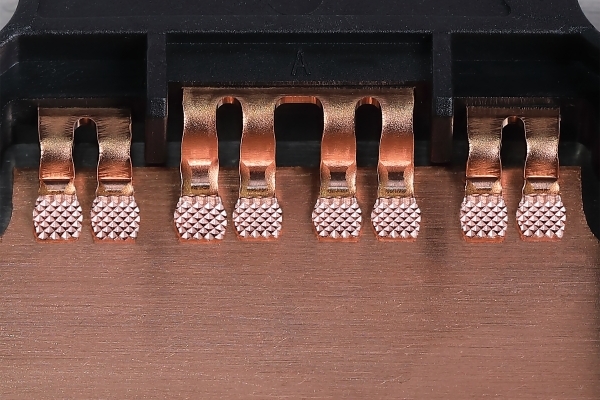

IGBT and SiC power module terminals
Features
Good welding ability.
Large welding area.
CCD camera line scanning, automatic positioning and welding.
High precision motion control, multi-parameter precise control.
Flexible automation system that can support rapid changeover.
The device is scalable and
Technical Parameter
Welding mode
Time/Energy/Height
Loading mode
Semi-automatic/Fully automatic
Amplitude range
50%~100%
Welding area
2~25㎜²
Welding thickness
0.3~1.5㎜
Positioning system
Visual positioning and visual guidance
Motion system
Fully servo control
Quality monitoring
Various data monitoring, process control
MES system
Available
Optional
Scanning gun, dust-removing system
